Mitsubishi - MS-N Contactors

Substantial safety and functionality realized with a full lineup

Incorporation of CAN terminal for simple wiring
By adopting a CAN terminal, there is no need to remove the screws, and losing of the terminal screw is prevented by the integrated screw holder and terminal screw. The terminal screw is set in a plastic screw holder. When each pole is moved and the screw loosened, the screw is naturally set in the screw holder. This is Mitsubishi's original CAN terminal (Patented)

Unified design for N-Series
The design has been unified for the MS-N series. The front face of the product is a bright white color, making the inside of the panel brighter and providing a clean image

Arc space reduced to approximately one-third
By adopting the new extinguishing mechanism, the arc space has been reduced to approximately 1/3 (Mitsubishi comparison)

Compatible with International standards
Applicable standards : JIS, JEM, IEC, EN, VDE, BS
Approved standards : UL, CSA, LR, BV, NK, KR, TUV, GB

Index

1.1. MS-N contactors
AC coils

1.2. MS-N contactors
DC coils

2.1. Replacement coils

2.2. Replacement contact kits

2.3 Auxiliary contact blocks

2.4. Mechanical Interlocks

2.5 Surge Absorbers

2.6. Terminal cover for contactors

2.7 Pneumatic time delay modules

2.8 DC Interface modules

3. Additional documentation

1.Non-Reversing Contactors - Direct On Line (DOL)

1.1. AC coil control voltage

(back to index)

AC coil
Rating	4kW (400Vac) 5HP (480Vac) 9A (AC-3)		5.5kW (400Vac) 7-1/2HP (480Vac) 12A (AC-3)				7.5kW (400Vac) 10HP (480Vac) 16A (AC-3)	11kW (400Vac) 10HP (480Vac) 22A (AC-3)			15kW (400Vac) 20HP (480Vac) 30A (AC-3)	7.5kW (400Vac) 10HP (480Vac) 17A (AC-3)	18.5kW (400Vac) 25HP (480Vac) 40A (AC-3)	15kW (400Vac) 15HP (480Vac) 32A (AC-3)	18.5kW (400Vac) 20HP (480Vac) 40A (AC-3)	22kW (400Vac) 30HP (480Vac) 50A (AC-3)	30kW (400Vac) 40HP (480Vac) 65A (AC-3)	45kW (400Vac) 50HP (480Vac) 85A	55kW (400Vac) 75HP (480Vac) 105A	60kW (400Vac) 75HP (480Vac) 120A	75kW (400Vac) 100HP (480Vac) 150A	90kW (400Vac) 100HP (480Vac) 180A	132kW (400Vac) 150HP (480Vac) 250A	160kW (400Vac) 200HP (480Vac) 300A	220kW (400Vac) 300HP (480Vac) 400A	330kW (400Vac) 400HP (480Vac) 630A	440kW (400Vac) 600HP (480Vac) 800A

Aux. contacts	1NO	1NC	1NO	1NC	1NO+1NC	2NO		1NO+1NC	2NO	2NO+2NC	2NO+2NC		2NO+2NC			2NO+2NC	2NO+2NC	2NO+2NC	2NO+2NC	2NO+2NC	2NO+2NC	2NO+2NC	2NO+2NC	2NO+2NC	2NO+2NC	2NO+2NC	2NO+2NC
12Vac (50/Hz)	S-N10 AC12V	S-N10 AC12V(1b)	S-N11 AC12V	S-N11 AC12V(1b)	S-N12 AC12V	S-N12 AC12V(2a)	S-N18 AC12V	S-N20 AC12V	S-N20 AC12V(2a)	S-N21 AC12V	S-N25 AC12V	S-N28 AC12V	S-N35 AC12V	S-N38 AC12V	S-N48 AC12V	-	-	-	-	-	-	-	-	-	-	-	-
24Vac (50/Hz)	S-N10 AC24V	S-N10 AC24V(1b)	S-N11 AC24V	S-N11 AC24V(1b)	S-N12 AC24V	S-N12 AC24V(2a)	S-N18 AC24V	S-N20 AC24V	S-N20 AC24V(2a)	S-N21 AC24V	S-N25 AC24V	S-N28 AC24V	S-N35 AC24V	S-N38 AC24V	S-N48 AC24V	S-N50 AC24V	S-N65 AC24V	S-N80 AC24V	S-N95 AC24V	S-N125 AC24V	S-N150 AC24V	-	-	-	-	-	S-N800 AC24V
48Vac (50/Hz)	S-N10 AC48V	S-N10 AC48V(1b)	S-N11 AC48V	S-N11 AC48V(1b)	S-N12 AC48V	S-N12 AC48V(2a)	S-N18 AC48V	S-N20 AC48V	S-N20 AC48V(2a)	S-N21 AC48V	S-N25 AC48V	S-N28 AC48V	S-N35 AC48V	S-N38 AC48V	S-N48 AC48V	S-N50 AC48V	S-N65 AC48V	S-N80 AC48V	S-N95 AC48V	S-N125 AC48V	S-N150 AC48V	-	-	-	-	-	S-N800 AC48V
120Vac (60Hz)	S-N10 120Vac	S-N10 120Vac(1b)	S-N11 120Vac	S-N11 120Vac(1b)	S-N12 120Vac	S-N12 120Vac(2a)	S-N18 120Vac	S-N20 120Vac	S-N20 120Vac(2a)	S-N21 120Vac	S-N25 120Vac	S-N28 120Vac	S-N35 120Vac	S-N38 120Vac	S-N48 120Vac	S-N50 120Vac	S-N65 120Vac	S-N80 120Vac	S-N95 120Vac	S-N125 120Vac	S-N150 120Vac	S-N180 120Vac	S-N220 120Vac	S-N300 120Vac	S-N400 120Vac	S-N600 120Vac	S-N800 120Vac
200-240Vac (50Hz/60Hz)	S-N10 AC200V	S-N10 AC200V(1b)	S-N11 AC200V	S-N11 AC200V(1b)	S-N12 AC200V	S-N12 AC200V(2a)	S-N18 AC200V	S-N20 AC200V	S-N20 AC200V(2a)	S-N21 AC200V	S-N25 AC200V	S-N28 AC200V	S-N35 AC200V	S-N38 AC200V	S-N48 AC200V	S-N50 AC200V	S-N65 AC200V	S-N80 AC200V	S-N95 AC200V	S-N125 AC200V	S-N150 AC200V	S-N180 AC200V	S-N220 AC200V	S-N300 AC200V	S-N400 AC200V	S-N600 AC200V	S-N800 AC200V
380-440Vac (50/60Hz)	S-N10 AC400V	S-N10 AC400V(1b)	S-N11 AC400V	S-N11 AC400V(1b)	S-N12 AC400V	S-N12 AC400V(2a)	S-N18 AC400V	S-N20 AC400V	S-N20 AC400V(2a)	S-N21 AC400V	S-N25 AC400V	S-N28 AC400V	S-N35 AC400V	S-N38 AC400V	S-N48 AC400V	S-N50 AC400V	S-N65 AC400V	S-N80 AC400V	S-N95 AC400V	S-N125 AC400V	S-N150 AC400V	S-N180 AC400V	S-N220 AC400V	S-N300 AC400V	S-N400 AC400V	S-N600 AC400V	S-N800 AC400V
415Vac (50Hz) 480Vac (60Hz)	S-N10 480Vac	S-N10 480Vac(1b)	S-N11 480Vac	S-N11 480Vac(1b)	S-N12 480Vac	S-N12 480Vac(2a)	S-N18 480Vac	S-N20 480Vac	S-N20 480Vac(2a)	S-N21 480Vac	S-N25 480Vac	S-N28 480Vac	S-N35 480Vac	S-N38 480Vac	S-N48 480Vac	S-N50 480Vac	S-N65 480Vac	S-N80 480Vac	S-N95 480Vac	S-N125 480Vac	S-N150 480Vac	S-N180 480Vac	S-N220 480Vac	S-N300 480Vac	S-N400 480Vac	S-N600 480Vac	S-N800 480Vac

1.2. DC coil control voltage

(back to index)

DC coil
Rating	5.5kW 7.5HP 12A				11kW 15HP 22A	18.5kW 25HP 40A	22kW 30HP 50A	30kW 40HP 65A	45kW 60HP 85A	55kW 60HP 105A	60kW 80HP 120A	75kW 100HP 150A	132kW 180HP 250A	160kW 210HP 300A	220kW 300HP 400A	330kW 450HP 630A	440kW 600HP 800A

Aux. contacts	1NO	1NC	1NO+1NC	2NC	2NO+2NC	2NO+2NC		2NO+2NC	2NO+2NC	2NO+2NC	2NO+2NC	2NO+2NC	2NO+2NC	2NO+2NC	2NO+2NC	2NO+2NC	2NO+2NC
12Vdc	SD-N11 DC12V	SD-N11 DC12V(1b)	SD-N12 DC12V	SD-N12 DC12V(2a)	SD-N21 DC12V	SD-N35 DC12V	SD-N50 DC12V	SD-N65 DC12V	SD-N80 DC12V	SD-N95 DC12V	SD-N125 DC12V	SD-N150 DC12V	SD-N220 DC12V	SD-N300 DC12V	SD-N400 DC12V	SD-N600 DC12V	SD-N800 DC12V
24Vdc	SD-N11 DC24V	SD-N11 DC24V(1b)	SD-N12 DC24V	SD-N12 DC24V(2a)	SD-N21 DC24V	SD-N35 DC24	SD-N50 DC24V	SD-N65 DC24V	SD-N80 DC24V	SD-N95 DC24V	SD-N125 DC24V	SD-N150 DC24V	SD-N220 DC24V	SD-N300 DC24V	SD-N400 DC24V	SD-N600 DC24V	SD-N800 DC24V
48Vdc	SD-N11 DC48V	SD-N11 DC48V(1b)	SD-N12 DC48V	SD-N12 DC48V(2a)	SD-N21 DC48V	SD-N35 DC48V	SD-N50 DC48V	SD-N65 DC48V	SD-N80 DC48V	SD-N95 DC48V	SD-N125 DC48V	SD-N150 DC48V	SD-N220 DC48V	SD-N300 DC48V	SD-N400 DC48V	SD-N600 DC48V	SD-N800 DC48V
110Vdc	SD-N11 DC110V	SD-N11 DC110V(1b)	SD-N12 DC110V	SD-N12 DC110V(2a)	SD-N21 DC110V	SD-N35 DC110V	SD-N50 DC110V	SD-N65 DC110V	SD-N80 DC110V	SD-N95 DC110V	SD-N125 DC110V	SD-N150 DC110V	SD-N220 DC110V	SD-N300 DC110V	SD-N400 DC110V	SD-N600 DC110V	SD-N800 DC110V
220Vdc	SD-N11 DC220V	SD-N11 DC220V(1b)	SD-N12 DC220V	SD-N12 DC220V(2a)	SD-N21 DC220V	SD-N35 DC220V	SD-N50 DC220V	SD-N65 DC220V	SD-N80 DC220V	SD-N95 DC220V	SD-N125 DC220V	SD-N150 DC220V	SD-N220 DC220V	SD-N300 DC220V	SD-N400 DC220V	SD-N600 DC220V	SD-N800 DC220V

Contactors options

The above AC and DC contactors are available with a combination of:

finger protection cover ("CX" suffix). These covers are also availble to purchase as separate components (see here)
pre-assembled surge absorber ("SA" suffix). These surge absorber are also available as separate components (see here)

2. Optional parts and Accessories for contactors

2.1. Replacement coils

(back to index)

For coil replacement
in AC contactors

24Vac

48Vac

100Vac

120Vac

127Vac

200Vac

220Vac

230Vac

260Vac

380Vac

400Vac

440Vac

500Vac

S-N10, S-N11, S-N12

S-N18

S-N20, S-N21

S-N25, S-N35

For coil replacement in AC contactors	24Vac	48Vac	100Vac	200Vac	300Vac	400Vac	500Vac
S-N50, S-N65	S-N50-COIL AC24V	S-N50-COIL AC48V	S-N50-COIL AC100V	S-N50-COIL AC200V	S-N50-COIL AC300V	S-N50-COIL AC400V	S-N50-COIL AC500V
S-N80, S-N95	S-N80-COIL AC24V	S-N80-COIL AC48V	S-N80-COIL AC100V	S-N80-COIL AC200V	S-N80-COIL AC300V	S-N80-COIL AC400V	S-N80-COIL AC500V
S-N125, S-N150	S-N125-COIL AC24V	S-N125-COIL AC48V	S-N125-COIL AC100V	S-N125-COIL AC200V	S-N125-COIL AC300V	S-N125-COIL AC400V	S-N125-COIL AC500V
S-N180, S-N220	-	-	S-N180-COIL AC100V	S-N180-COIL AC200V	S-N180-COIL AC300V	S-N180-COIL AC400V	S-N180-COIL AC500V
S-N300, S-N400	-	-	S-N300-COIL AC100V	S-N300-COIL AC200V	S-N300-COIL AC300V	S-N300-COIL AC400V	S-N300-COIL AC500V
S-N600, S-N800	-	-	S-N600-COIL AC100V	S-N600-COIL AC200V	S-N600-COIL AC300V	S-N600-COIL AC400V	S-N600-COIL AC500V

For coil replacement in DC contactors	24Vdc	48Vdc	100Vdc	110Vdc	125Vdc	200Vdc	220Vdc
SD-N11, SD-N12	SD-N11-COIL DC24V	SD-N11-COIL DC48V	SD-N11-COIL DC100V	SD-N11-COIL DC110V	SD-N11-COIL DC125V	SD-N11-COIL DC200V	SD-N11-COIL DC220V
SD-N21	SD-N21-COIL DC24V	SD-N21-COIL DC48V	SD-N21-COIL DC100V	SD-N21-COIL DC110V	SD-N21-COIL DC125V	SD-N21-COIL DC200V	SD-N21-COIL DC220V
SD-N35	SD-N35-COIL DC24V	SD-N35-COIL DC48V	SD-N35-COIL DC100V	SD-N35-COIL DC110V	SD-N35-COIL DC125V	SD-N35-COIL DC200V	SD-N35-COIL DC220V
SD-N50, SD-N65	SD-N50-COIL DC24V	SD-N50-COIL DC48V	SD-N50-COIL DC100V	SD-N50-COIL DC110V	SD-N50-COIL DC125V	SD-N50-COIL DC200V	SD-N50-COIL DC220V
SD-N80, SD-N95	SD-N80-COIL DC24V	SD-N80-COIL DC48V	SD-N80-COIL DC100V	SD-N80-COIL DC110V	SD-N80-COIL DC125V	SD-N80-COIL DC200V	SD-N80-COIL DC220V

For coil replacement in DC contactors	24Vdc	48Vdc	100Vdc	110Vdc	125Vdc	200Vdc	220Vdc
SD-N125, SD-N150	SD-N125-COIL DC24V	SD-N125-COIL DC48V	SD-N125-COIL DC100V	SD-N125-COIL DC110V	SD-N125-COIL DC125V	SD-N125-COIL DC200V	SD-N125-COIL DC220V
SD-N220	SD-N220-COIL DC24V	SD-N220-COIL DC48V	SD-N220-COIL DC100V	SD-N220-COIL DC110V	SD-N220-COIL DC125V	SD-N220-COIL DC200V	SD-N220-COIL DC220V
SD-N300, SD-N400	SD-N300-COIL DC24V	SD-N300-COIL DC48V	SD-N300-COIL DC100V	SD-N300-COIL DC110V	SD-N300-COIL DC125V	SD-N300-COIL DC200V	SD-N300-COIL DC220V
SD-N600, SD-N800	SD-N600-COIL DC24V	SD-N600-COIL DC48V	SD-N600-COIL DC100V	SD-N600-COIL DC110V	SD-N600-COIL DC125V	SD-N600-COIL DC200V	SD-N600-COIL DC220V

2.2 Replacement contact kits

(back to index)

Replacement main/power contacts for contactors

Kit consists of 3 moving contacts and 6 stationary contacts (include springs and spring supports also)

Applicable for AC
operated coil

S-N10(CX)
S-N11(CX)
S-N12(CX)

S-N18(CX)

S-N20(CX)
S-N21(CX)

S-N25(CX)

S-N35(CX)

S-N50(CX)

S-N65(CX)

S-N80

S-N95

S-N125

S-N150

S-N180

S-N220

S-N300

S-N400

S-N600

S-N800

Applicable for DC
operated coil

SD-N11(CX)
SD-N12(CX)

SD-N21(CX)

SD-N35(CX)

SD-N50

SD-N65

SD-N80

SD-N95

SD-N125

SD-N150

SD-N220

SD-N300

SD-N400

SD-N600

SD-N800

Replacement auxiliary contacts for contactors

	Kits consists of 1 bifurcated moving contact and 2 stationary contacts		Kits consists of 2 bifurcated moving contact and 4 stationary contacts		Kits consists of 4 bifurcated moving contact and 8 stationary contacts
For AC operated contactors	S-N10(CX) S-N11(CX)		S-N12(CX)	S-N20(CX)	S-N21(CX) S-N35(CX)	S-N50(CX) S-N65(CX) S-N80 S-N95	S-N125
For DC operated contactors	SD-N11(CX)		SD-N12(CX)	-	SD-N21(CX) SD-N35(CX)	SD-N50(CX) SD-N65(CX) SD-N80 SD-N95	SD-N125
Contact arrangement	1NO	1NC	1NO+1NC	1NO+1NC	2NO+2NC	2NO+2NC	2NO+2NC
	BH719N310	BH719N311	BH729N310	BH739N310	BH739N311	BH539N315	BH579N312

2.3. Auxiliary contact blocks

(back to index)

Front clip-on mounting auxiliary contact blocks

- maximum 1 pc of auxiliary contact block can be mounted

For AC-operated contactors	S-N10(CX) S-N11(CX) S-N12(CX)	S-N20(CX) S-N21(CX) S-N25(CX)	S-N35(CX) S-N18(CX) S-N28(CX)	S-N38(CX) S-N48(CX) S-N50(CX)	S-N65(CX)
For DC-operated contactors						SD-N11(CX) SD-N12(CX) SD-N21(CX) SD-N35(CX) SD-N50 SD-N65
Contact arrangement	2NO	1NO+1NC	2NC	4NO	3NO+1NC	2NO+2NC
	UN-AX2(CX)2A	UN-AX2(CX)1A1B	UN-AX2(CX)2B	UN-AX4(CX)4A	UN-AX4(CX)3A1B	UN-AX4(CX)2A2B

Side clip-on mounting auxiliary contact blocks

- maximum 2 pcs of auxiliary contact block can be mounted

For AC-operated contactors	S-N10(CX) S-N11(CX) S-N20(CX) S-N21(CX) S-N25(CX) S-N35(CX) S-N50(CX) S-N65(CX)	S-N80 S-N95 S-N125	S-N150 S-N220 S-N300 S-N400 S-N180	S-N600 S-N800
For DC-operated contactors	SD-N11(CX) SD-N21(CX) SD-N35(CX) SD-N50 SD-N60	SD-N80 SD-N95 SD-N125	SD-N150 SD-N220 SD-N300 SD-N400 SD-N180	SD-N600 SD-N800
Contact arrangement	1NO+1NC	1NO+1NC	1NO+1NC	2NO+2NC
	UN-AX11(CX)	UN-AX80	UN-AX150	UN-AX600

2.4 Mechanical interlocks

(back to index)

For AC-operated contactors	S-N10(CX) S-N11(CX)	S-N20(CX) S-N21(CX) S-N25(CX) S-N35(CX) S-N50(CX) S-N65(CX)	S-N80 S-N95 S-N125	S-N150	S-N180 S-N220 S-N300 S-N400
For DC-operated contactors	SD-N11(CX)	SD-N21(CX) SD-N35(CX) SD-N50 SD-N65	SD-N80 SD-N95 SD-N125	SD-N150	SD-N220 SD-N300 SD-N400
	UN-ML11(CX)	UN-ML21	UN-ML80	UN-ML150	UN-ML220

2.5 Surge Absorbers

(back to index)

	Varistor type		Varistor type with operating indicator (LED)	Varistor and CR type		CR type
For AC-operated contactors	S-N10 to S-N48		S-N10 to S-N48	S-N10 to S-N48		S-N10 to S-N48
For DC-operated contactors	SD-N11 SD-N12 SD-N21 SD-N35		SD-N11 SD-N12 SD-N21 SD-N35	SD-N11 SD-N12 SD-N21 SD-N35		SD-N11 SD-N12 SD-N21 SD-N35
Control voltage	AC24-240V DC24-250V	AC200-480V	AC50-240V DC60-250V	AC24-50V DC24-60V	AC100-240V DC100-250V	AC24-240V	DC24-250V
	UN-SA21 AC200V	UN-SA21 AC400V	UN-SA22 AC200V	UN-SA25 AC48V	UN-SA25 AC200V	UN-SA23 AC200V	UN-SA13 DC200V

2.6 Terminal cover for contactors

(back to index)

For AC-operated contactors	S-N50 S-N65	S-N80 S-N95	S-N125	S-N150	S-N180 S-N220	S-N300 S-N400
For DC-operated contactors	SD-N50, SD-N65	SD-N80, SD-N95	SD-N125	SD-N150	SD-N220	SD-N300, SD-N400
	UN-CZ500	UN-CZ800	UN-CZ1250	UN-CZ1500	UN-CZ2200	UN-CZ3000

2.7 Pneumatic time delay modules

(back to index)

For AC-operated contactors	S-N10(CX) S-N11(CX) S-N12(CX) S-N18(CX)
For DC-operated contactors	SD-N11(CX) SD-N12(CX)
	UN-TR4AN(CX)

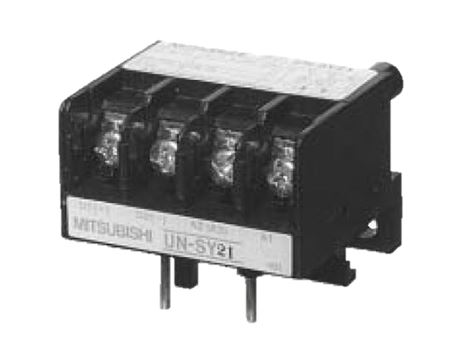

2.8. DC Interfaces modules

(back to index)

	Direct mounting contactor		Separate mounting
Applicable for AC operated coils	S-N10(CX) to S-N48(CX)	S-N50, S-N65	S-N80 to S-N400
Solid state output	UN-SY21(CX)	UN-SY31	UN-SY11
Relay output	UN-SY22(CX)	UN-SY32	UN-SY12

3. Documentation

(back to index)

Click to download MS-N catalogue
